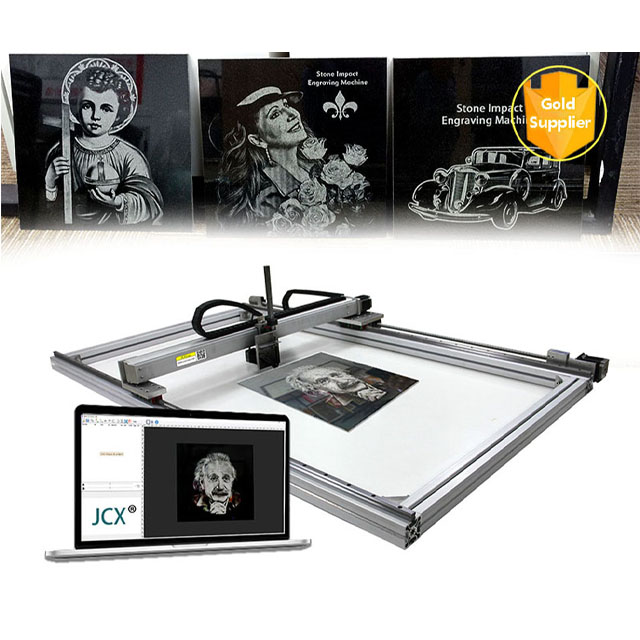

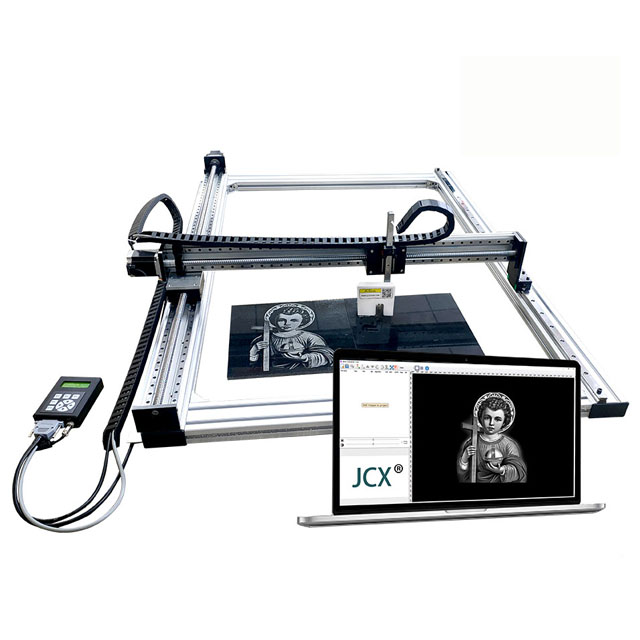

JCXStone - 4060 Advanced Stone Impact Engraving Machine

4060 Advanced Stone Impact Engraving Machine

（Size：400*600mm）

Engraving machine is designed to engrave the image on the stone with point (raster)

method. Engraving is conducted by the transference of the digital image on the surface by

gradual strikes of the working instrument; that is diamond needle. Granite, Gabbros, Basalt,

Marble, and Glass can be the surface to engrave the picture on it.

Related Knife Materials

Product Details

Ⅰ. Product Parameters

Technical Parameters	Description
Type	Tablet
Working size	400х600мм
Weight	35kg
Power supply	220 V 50 Hz
Total power	<80W
Transmission type	X-axis-screw Y-axis-screw
Images download	SD-card
Independent controller	Completely autonomous
Internal memory	Yes
Processed materials	Granite, Gabbros, Basalt, Marble, Glass
Engraving depth	0.5мм
Location precision	0.05мм
Engraving steps	From 0.1 to 0.5 with the accuracy of 0.025 mm (100-20 steps/cm)
Grey shades	From 2 (bit format) to 256
Combined regime	Yes; 256 shade
Engraving speed	1-2,5 hours for the images with size 30х40 cm
Engraving tools (needles with the diamond weight 0,06 carat)	10-30 images with size 30х40 cm
Maximum incline of material	90 degrees
Warranty period	1 year
After-sale service	Yes

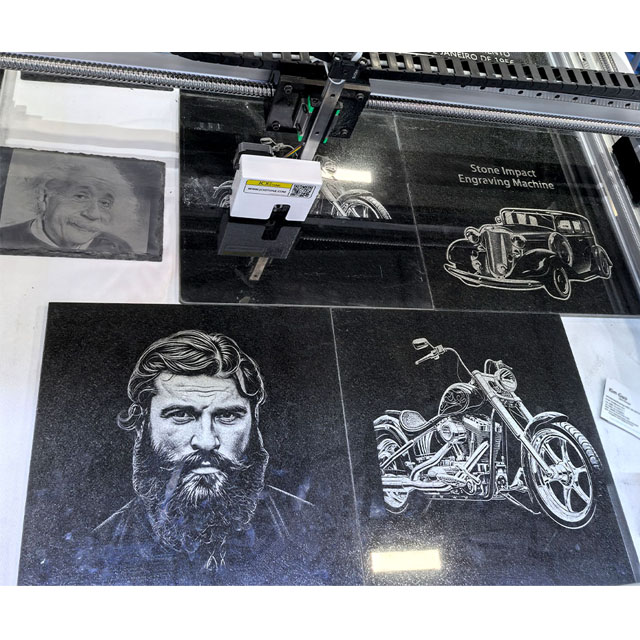

II. Samples

III. Product Advantages

Light weight and small form factor simplify transportation, storage, and use in small manufacturing plants;
Brand manufacturer quality unit ( Bosch Rexroth, Shangyin, etc. );
Built-in autonomous controller and non-volatile memory, no need to connect a computer;
Fast image making and engraving;
Anti-power failure;
minimum power consumption;
Use SD card to download images;
Sensor LCD panel on machine control block;
The built-in software is concise and clear;
Large selection of grayscale and user licenses for engraved images;
Software adjustment of user working speed;
Easy training for personnel that do not require specialized knowledge;
1 year warranty service;
Departures to customers to train personnel and install machines;
Permanent support for all customers, including the possibility to provide them with service at their address after the warranty period.

IV. Frequently Asked Questions By Customers

1. How long does it take to engrave a 30*40cm picture?

About 30 minutes.

2. The average engraving speed of the machine

2 m/min.

3. How long does it take to engrave a 10*10cm picture?

About 10 minutes.

4. How much area can a diamond drill bit engrave?

It can work on 10 square meters.

5. Is it possible to pilot with Apple plus Photoshop?

Yes, first use photoshop to process the photo, then use sepcial software to process the photo, change the photo format to bmc. (system together with machine)

6. What is the principle of engraving?

Diamond Needle.

7. What is the working format?

bmc format.

V. Company Information

Our company name is Beijing Yandiao CNC Machine Tool Co., Ltd.,

Mainly engaged in the design, research and production of CNC machine tools since 2010. Factory, more than 80,000 square meters of workshop, more than 600 workers.
